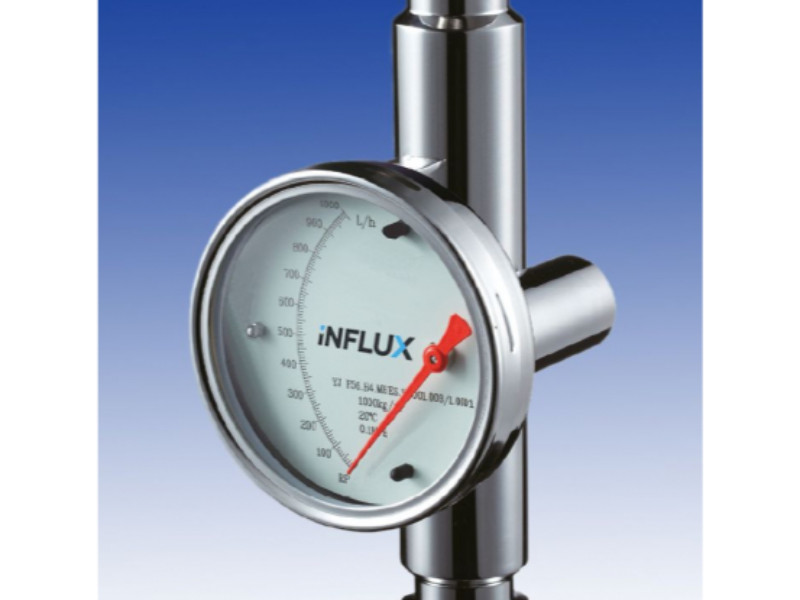

iMT high flow meter
SKU: iMT
Manufacturer: Influx
The iMT Metal Tube flowmeter features a high visibility, direct reading scale with options for remote switching or 4 to 20 mA output. It is well suited to high pressure, temperature and harsh environmental conditions.
Key Features & Benefits
90° Linear Scale
Easy to Read
Repeatable & Stable
pdf datasheet
Key Features & Benefits
90° Linear Scale
Easy to Read
Repeatable & Stable
pdf datasheet
General
| Gas Range | 0.1 to 750 m³/h (Air equiv.) |
|---|---|
| Liquid Range | 5 L/h to 25 m³/h (Water equiv.) |
| Turndown | typically 10:1 |
| Alarms (Optional) | Single or Dual NAMUR Type (ATEX II 2G) |
| Transmitter (Optional) | 2-wire, 4 to 20 mA (EEx ia IIC T6) (ATEX II 2GD T70°C) |
| Accuracy | ± 2% FSD |
| Temperature | -30°C to 65°C Ambient, -40°C to 200°C Fluid |
| Pressure | 100 bar max. (or Flange rating) |
| Flanged | DIN PN16 or ANSI 150lb, Raised Faced |
| Screwed | BSP Parallel Female (½" to 2") |
| Sizes | DN15 to DN80 (½" to 3") |
| Materials (Standard) | 316 Stainless Steel |
