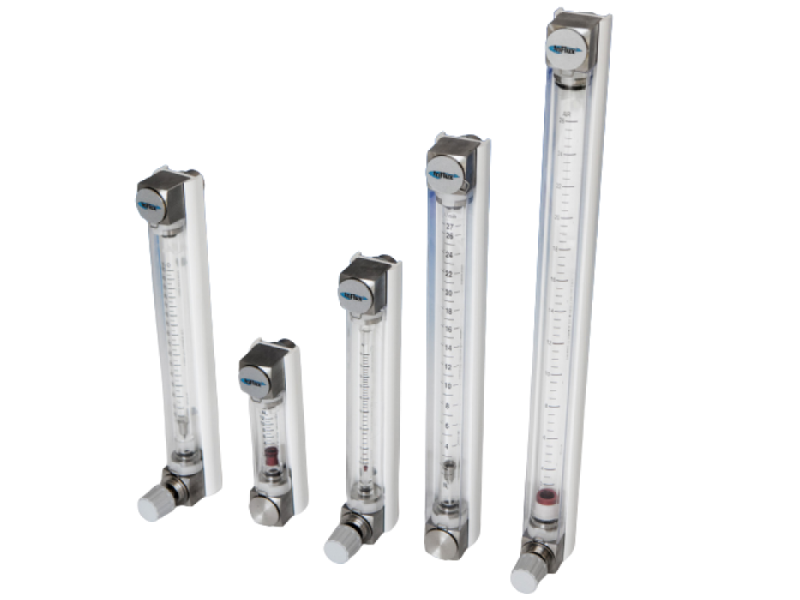

Uniflux low flow meter
SKU: Uniflux
Manufacturer: Influx
Uniflux direct reading flowmeters combine versatility, practicality and accuracy for the measurement of gas and liquid flowrates. They are available in standard, compact and long series as well as a range of materials and are suitable for panel or inline mounting. They offer either fine or ultrafine needle control valve options as well as high visibility and ease of installation. A wide range of standard and customised scales are available to meet even the most specific requirements
Key Features & Benefits
Alarm options
High repeatability
Interchangeable tubes.
Low pressure drop
pdf datasheet
Key Features & Benefits
Alarm options
High repeatability
Interchangeable tubes.
Low pressure drop
pdf datasheet
General
| Gas Range | 5 cm³/min to 120 L/min (Air equiv.) |
|---|---|
| Liquid Range | 2 cm³/min to 4.4 L/min (Water equiv.) |
| Scale Length | approx. max. 30, 100, 140 mm (Compact, Standard, Long) |
| Accuracy Class | 4, 2.5*, 2.5% VDI/VDE 3513 (Compact, Standard*, Long) |
| * ± 2.5% FSD for ranges <= 250 cm³/min Air or <= 10 cm³/min Water | |
| Flowrate Reading | 'Top' edge of the Float @ middle of the Graduation Line |
| Repeatability | Better than 0.5% |
| Temperature | -15°C to 120°C |
| Pressure (Non Shock) | 20 bar max. |
| Connections | ¼" BSP Parallel Female |
Standard Materials
| Connections | 316 Stainless Steel or Nickel Plated Brass |
|---|---|
| Seals | Viton O-Rings, PTFE Valve Packing |
| Flow Tube | Borosilicate Glass |
