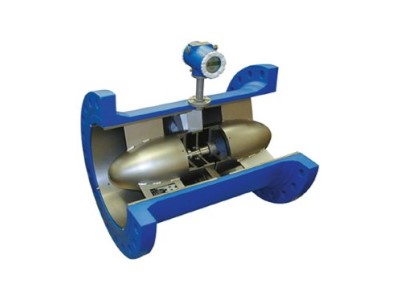

Turbine Flowmeter RQ
SKU: RQ
Manufacturer: Bopp Reuther
The Turbine Flowmeter RQ Measuring liquids and liquefied gases in the chemical and petrochemical industry, in the mineral oil industry and loading systems, especially for high operating pressures and low viscosities, 0.15 to 2,400 m³/h, accuracy up to ±0,15%
pdf datasheet
pdf datasheet
Applications:
- crude oil
- mineral oil
- acids
- alkaline solutions
- solvents
- water
- liquefied gases
- refined oil products (gasoline, kerosene, jet A1, JP8, diesel)
- vinyl chloride
Special Features:
- high flow capacity
- approved for fiscal metering
Characteristics:
- high measurement accuracy
- high repeatability
- proven and reliable measuring instruments
Technical Data:
| Nominal size | DN15 to DN300 (1/2“ bis 12“) |
| Process connection | Flanges according to DIN or ANSI |
| Material |
Carbon steel, stainless steel (option: Hastelloy, Duplex) |
| Flow Range |
0.15 to 2,400 m³/h |
| Accuracy | ±0,15% to ±0,5% |
| Repeatability | ±0,02% |
| Viscosity | 0,2 to 50 mPa·s |
| Process temperature | -60°C to +250°C (-76°F to +482°F) |
| Process pressure | up to 320 bar (4,641 psi) |
| Ex-protection | Flame proof or intrinsically safe |
